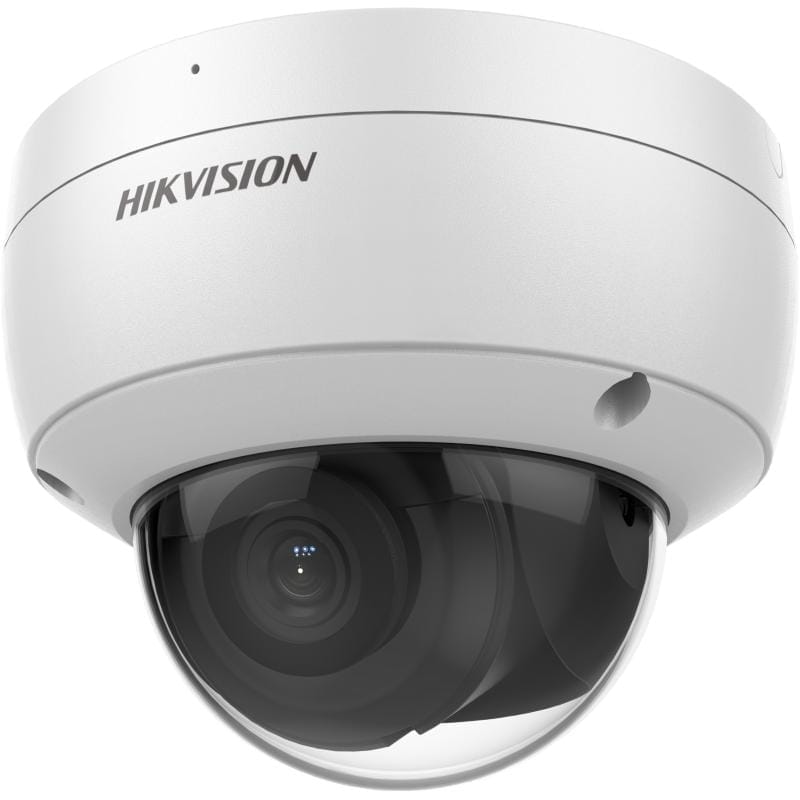

Hikvision 8MP AcuSense Vandal Dome Network Camera

📷 Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160


  Min. Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

🔍 Lens

• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)


  Focal Length & Field of View (FOV):

  • 2.8 mm: Horizontal 107°, Vertical 57°, Diagonal 128°
  • 4 mm: Horizontal 87°, Vertical 46°, Diagonal 105°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

📏 DORI Distance

Hikvision 8MP AcuSense Vandal Dome Network Camera

2.8 mm Lens:

• • Detect: 88 m
  • Observe: 35 m
  • Recognize: 17 m
  • Identify: 9 m

4 mm Lens:

• Detect: 108 m
• Observe: 43 m
• Recognize: 22 m
• Identify: 11 m

💡 Illumination

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

🎞️ Video

Main Stream:

• • 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (same resolutions)
  • Third stream supported under certain settings
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline, Main, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Video Compression:

• • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264 (conditional support)
• Region of Interest (ROI): 1 fixed region for main and sub-stream

🔊 Audio

Hikvision 8MP AcuSense Vandal Dome Network Camera

• Audio Type: Mono sound
• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

Audio Bit Rate:

• • G.711ulaw/alaw: 64 Kbps
  • G.722.1 / G.726: 16 Kbps
  • MP2L2: 32–192 Kbps
  • MP3: 8–320 Kbps
  • AAC-LC: 16–64 Kbps
• Audio Sampling Rate: 8 / 16 / 32 / 44.1 / 48 kHz
• Environment Noise Filtering: Yes

🌐 Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, G), ISAPI, SDK, ISUP
• User/Host: Up to 32 users (Administrator, Operator, User)

Security:

• Password protection
• HTTPS encryption
• IP address filter
• Security Audit Log
• Authentication: HTTP/HTTPS (basic/digest), TLS 1.1/1.2, WSSE, ONVIF

🗄️ Network Storage & Client

Hikvision 8MP AcuSense Vandal Dome Network Camera

• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client Software: iVMS-4200, Hik-Connect, Hik-Central

Web Browser Support:

• Plug-in required: IE 10, IE 11
• Plug-in free: Chrome 57+, Firefox 52+
• Local Service: Chrome 57+, Firefox 52+

🖼️ Image

• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client/web)
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Signal-to-Noise Ratio (SNR): ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon masks

🔌 Interface

• Ethernet Interface: 1 RJ45 10/100 Mbps self-adaptive port
• On-Board Storage: microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key: Yes
• Built-in Microphone: Yes

🚨 Event & Smart Features

Basic Events:

• • Motion detection (human/vehicle classification)
  • Video tampering
  • Exception
• Smart Events: Face detection
• Linkage Actions: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording/capture

Deep Learning Functions:

• Perimeter Protection: Line crossing, intrusion
• Alarm triggering by human/vehicle classification

⚙️ General

Power Supply:

• • 12 VDC ± 25%, 0.5 A, max. 6 W
  • PoE: 802.3af, Class 3, 36–57 V, 0.25–0.15 A, max. 7.5 W
• Dimensions: Ø121.4 mm × 92.2 mm (Ø4.8″ × 3.6″)
• Package Dimensions: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: Approx. 550 g (1.2 lb.)
• With Package Weight: Approx. 800 g (1.8 lb.)
• Storage Conditions: -30 °C to 60 °C, Humidity ≤ 95% (non-condensing)
• Startup/Operating Conditions: Same as storage
• Language Support: 33 languages including English, Arabic, French, Portuguese (Brazil), Ukrainian, Japanese, and more

🛡️ General Functions & Approvals

• Functions: Heartbeat, anti-flicker, password reset via email, pixel counter

EMC Compliance:

• • FCC: 47 CFR Part 15, Subpart B
  • CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019
  • EN 50130-4:2011+A1:2014
  • RCM: AS/NZS CISPR 32:2015
  • IC: ICES-003: Issue 7
  • KC: KN32:2015, KN35:2015

Environmental Compliance:

• • CE-RoHS: 2011/65/EU
  • WEEE: 2012/19/EU
  • REACH: Regulation (EC) No 1907/2006

Protection Ratings:

• IP67: IEC 60529-2013
• IK10: IEC 62262:2002
