Product details

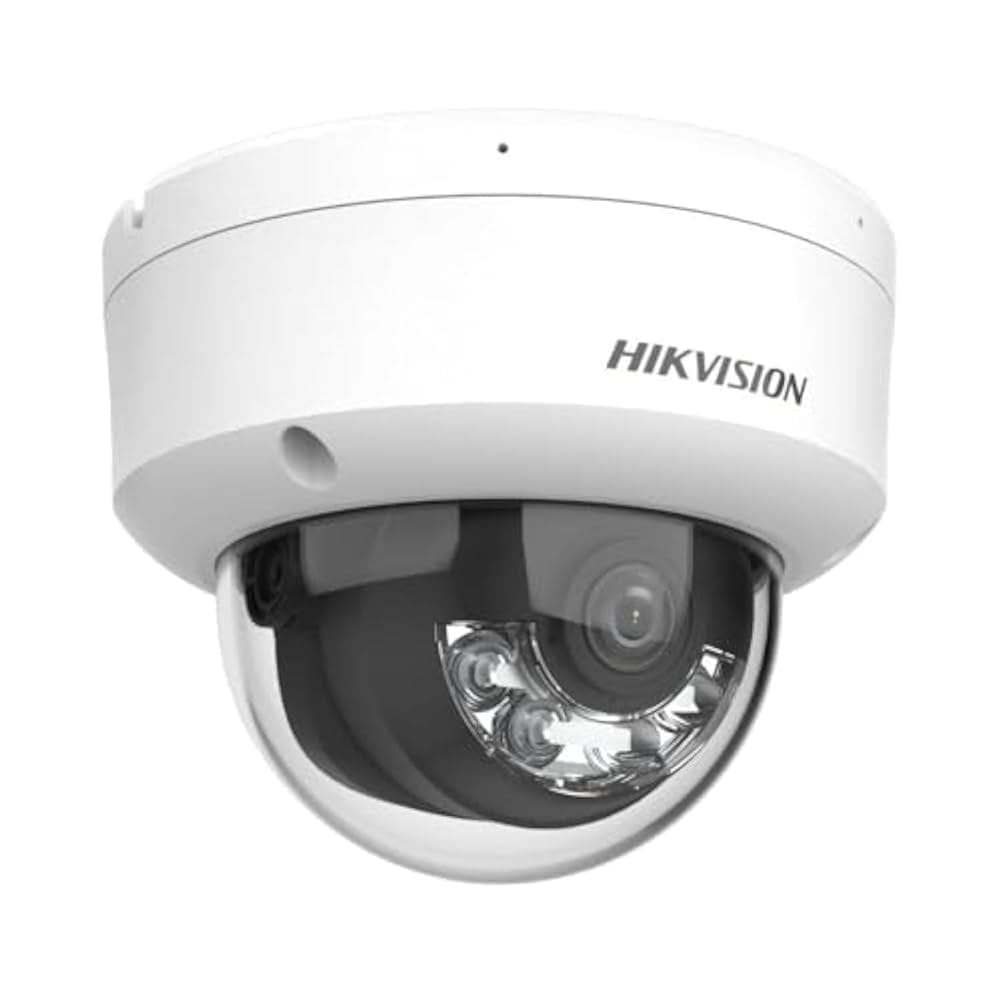

Hikvision 6MP Smart Hybrid Light Dome Network Camera
Specification
📷 Camera
• Image Sensor: 1/2.4″ Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
Min. Illumination:
• Color: 0.005 Lux @ (F1.6, AGC ON)
• B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
🔍 Lens
• Lens Type: Fixed focal lens (2.8 mm and 4 mm optional)
Focal Length & Field of View (FOV):
• 2.8 mm: Horizontal 105°, Vertical 55°, Diagonal 127°
• 4 mm: Horizontal 78°, Vertical 38°, Diagonal 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
📏 DORI Distance
Hikvision 6MP Smart Hybrid Light Dome Network Camera
2.8 mm Lens:
• Detect: 76 m
• Observe: 30 m
• Recognize: 15 m
• Identify: 7 m
4 mm Lens:
• Detect: 115 m
• Observe: 45 m
• Recognize: 23 m
• Identify: 11 m
💡 Illumination
• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
🎞️ Video
Main Stream:
• 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 20 fps (same resolutions)
Sub-Stream:
• 50/60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline, Main, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding
🔊 Audio
• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz / 16 kHz
Audio Compression:
• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate:
• G.711: 64 Kbps
• G.722.1 / G.726: 16 Kbps
• MP2L2: 32–160 Kbps
• AAC-LC: 16–64 Kbps
🌐 Network
Security:
• Password protection
• Watermark
• Authentication: HTTP (basic/digest), WSSE, ONVIF
• Security audit log
• Host authentication (MAC)
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S/T/G for -F model), ISAPI, SDK, Hik-Connect
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• User/Host: Up to 32 users (Administrator, Operator, User)
🖥️ Client & Web Interface
• Client Software: iVMS-4200, Hik-Connect
Web Browser Support:
• Live View: IE 10, IE 11
• Local Service: Chrome 57+, Firefox 52+, Edge 89+
🖼️ Image
Hikvision 6MP Smart Hybrid Light Dome Network Camera
• Wide Dynamic Range (WDR): 120 dB
• Signal-to-Noise Ratio (SNR): ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client/web)
• Privacy Mask: 4 programmable polygon masks
🔌 Interface
• Ethernet: 1 RJ45 10/100 Mbps self-adaptive port
• On-Board Storage (-F model): microSD/microSDHC/microSDXC, up to 512 GB
• Built-in Microphone: Yes
• Reset Key: Yes
🚨 Event & Linkage
Basic Events:
• Motion detection (human/vehicle classification)
• Video tampering
• Exception
Linkage Actions:
• Upload to FTP/memory card (-F)
• Send email
• Notify surveillance center
• Trigger recording/capture (-F)
⚙️ General
Hikvision 6MP Smart Hybrid Light Dome Network Camera
Power Supply:
• 12 VDC ± 25%, 0.5 A, max. 6 W
• PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material: Metal & Plastic
• Dimensions: Ø121.4 mm × 97.6 mm (Ø4.78″ × 3.84″)
• Package Dimensions: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight: Approx. 550 g (1.2 lb.)
• With Package Weight: Approx. 800 g (1.8 lb.)
• Storage Conditions: -30 °C to 60 °C, Humidity ≤ 95% (non-condensing)
• Startup/Operating Conditions: Same as storage
• Language Support: English, Ukrainian
🛡️ General Functions & Approvals
• Functions: Heartbeat, anti-banding, mirror, password protection, password reset via email
EMC Compliance:
• CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014
• EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• RCM: AS/NZS CISPR 32:2015
• IC: ICES-003: Issue 7
Safety Certifications:
• UL: UL 62368-1
• CB: IEC 62368-1:2014+A11
• CE-LVD: EN 62368-1:2014/A11:2017
• BIS: IS 13252 (Part 1):2010 / IEC 60950-1:2005
Environmental Compliance:
• CE-RoHS: 2011/65/EU
• WEEE: 2012/19/EU
• REACH: Regulation (EC) No 1907/2006
Protection Ratings:
• IP67: IEC 60529-2013
• IK08: IEC 62262:2002
