Product details

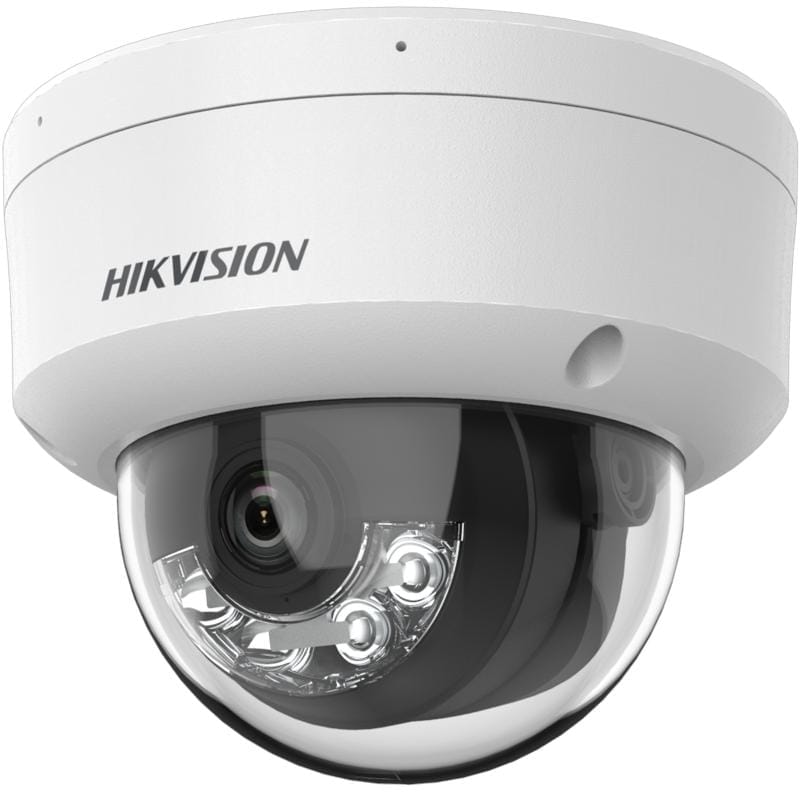

Hikvision 4MP Smart Hybrid Light Fixed Dome Camera
Imaging Performance
- Image Sensor: 1/3″ Progressive Scan CMOS for sharp, high-quality visuals.
- Resolution: Up to 2560 × 1440 (4MP), delivering detailed footage.
- Low Light Performance: Color imaging at just 0.005 Lux; full night vision with IR.
- Day/Night Function: IR cut filter for seamless switching.
- WDR (Wide Dynamic Range): 120 dB ensures clear images even in challenging light conditions.
- Image Enhancements: BLC, HLC, and 3D DNR reduce glare and noise for superior clarity.
Lens Options
- 2.8 mm Lens: Wide 98° horizontal field of view, ideal for broad coverage.
- 4 mm Lens: Narrower 78° horizontal field of view for focused monitoring.
- Fixed F1.6 Aperture: Captures more light for brighter images.
Illumination
- Smart Hybrid Light: Intelligent switching between infrared (IR) and white light.
- Illumination Range: Up to 30 meters for reliable night-time surveillance.
- IR Wavelength: 850 nm for clear visibility in total darkness.
Video & Audio
- Frame Rate: Up to 20 fps at 4MP resolution, and 25/24 fps at 1080p.
- Compression: H.265+/H.265/H.264+/H.264 ensures efficient storage without quality loss.
- Bitrate: 32 Kbps to 8 Mbps with CBR or VBR control.
- Audio: Built-in microphone with noise filtering for clearer sound capture.
- Audio Formats: Supports G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC.
Network & Security
- Protocols Supported: TCP/IP, DHCP, DNS, HTTP, RTSP, NTP, FTP, SMTP, IPv6, QoS, and more.
- Simultaneous Live View: Up to 6 channels.
- User Levels: Supports up to 32 users (administrator, operator, user).
- Security Features: Password protection, watermark, authentication protocols, and audit logs.
- Integration: Works with iVMS-4200, Hik-Connect, and major web browsers.
Storage & Interface
Hikvision 4MP Smart Hybrid Light Fixed Dome Camera
- Onboard Storage (-F models): MicroSD card support up to 512 GB.
- Ethernet: 1 RJ45 10M/100M self-adaptive Ethernet port.
- Reset Key: Available in -F model.
Event & Smart Functions
- Basic Events: Motion detection, video tampering, and exception alarms.
- Smart Detection: Human and vehicle target classification to minimize false alerts.
- Alarm Linkage: Upload to FTP, send email, notify monitoring center, trigger recording/capture.
Build & Reliability
- Material: Durable metal and plastic construction.
- Weatherproofing: IP67 rated for outdoor environments.
- Vandal Resistance: IK08 rating for impact protection.
- Operating Conditions: -30 °C to 60 °C, up to 95% humidity.
- Certifications: CE, FCC, UL, BIS, RoHS, WEEE, and more.
Power Requirements
Hikvision 4MP Smart Hybrid Light Fixed Dome Camera
- 12 VDC ± 25% or PoE (802.3af, Class 3)
- Power Consumption: Max. 6W (DC), 7.5W (PoE).
Dimensions & Weight
- Camera Size: Ø121.4 × 97.7 mm (Ø4.8″ × 3.8″)
- Weight: Approx. 550 g (1.2 lb), with package 800 g (1.8 lb).
Key Benefits
- 24/7 Full Coverage: Clear images in both day and night with hybrid lighting.
- Flexible Installation: Wide or narrow lens options to fit different needs.
- Smart Detection: Differentiates between humans, vehicles, and false alarms.
- Durable Design: Weatherproof and vandal-proof for reliable outdoor use.
- Efficient Storage: Advanced video compression reduces bandwidth and storage costs.
